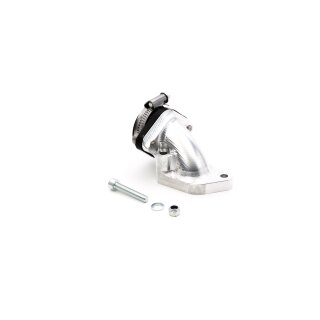

bgm says:"bgm PRO inlet manifold specially designed for the MBgm RT / RaceTour kits. But can be used on all other piston ported 200/225 cc Lambretta cylinder kits as well.
The CAD designed manifold is CNC machined from billet. It is designed to bring the carb as close to the original carb position as possible. It is designed to give the maximum clearance to the panel to make it perfectly work with the bgm airbox (BGM4488).
It is used with the MB Scooters flange type rubber and there are two connection sizes available, one for 28-30 mm and one for 24-25 carbs.
The shape to the inlet port is matched to the barrel so there is no matching necessary.
Right choice for carbs like:
- Keihin PWK 28
- Dellorto PHBH 28
- Dellorto PHBH 30
- Dellorto VHST
- Mikuni TM30
.
There are all parts delivered that are needed. We recommend to use a slight smear of silicone instant gasket instead of the paper gasket. To fit the manifold the engine bolt needs to be removed to make fitting possible. "
