bgm says:

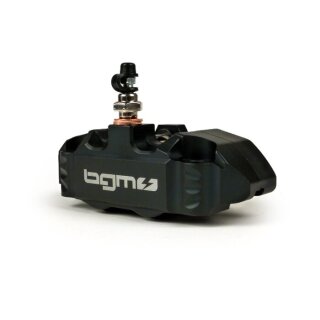

"Solid 4 piston brake caliper with radial mounting.
Two-piece CNC-machined housing made of high-strength anodized aluminum.
With 4x25mm pistons, the caliper has 40% more piston area than a conventional two-piston caliper with 30mm pistons. The hydraulic transmission ratio is greatly improved and the braking force (with the same leverage) is increased. Another advantage of the 4 piston technology is the symmetrical load on the pads, which means that they are always in full contact. A pad change is done by a stud quickly and easily. A big advantage in racing. Central connection of the brake line.
Suitable for the BGM brake caliper mount for PX, PK, T5 and Cosa aswell
- Piston diameter: 4x 25mm
- Mounting type: Radial
- Hole diameter: 82mm
- Mounting holes: Ø 8mm
- Brake banjo connection: M10x1,25mm
- Bleeder nipple integrated in brake banjo screw
- Can be driven with original brake pump
- Recommended brake pump piston diameter:
- Std. pump: 12-13mm
- Radial pump: 10-11mm"
